GoodWe ESA Series
Single phase all-in-one (HV) hybrid inverter and battery, 3–10 kW and 5–108 kWh. Full power module and battery module specifications from the GoodWe datasheet.
Products › GoodWe ESA Series
GoodWe
ESA Series
3–10 kW / 5–108 kWh · Single phase · All-in-one (HV)

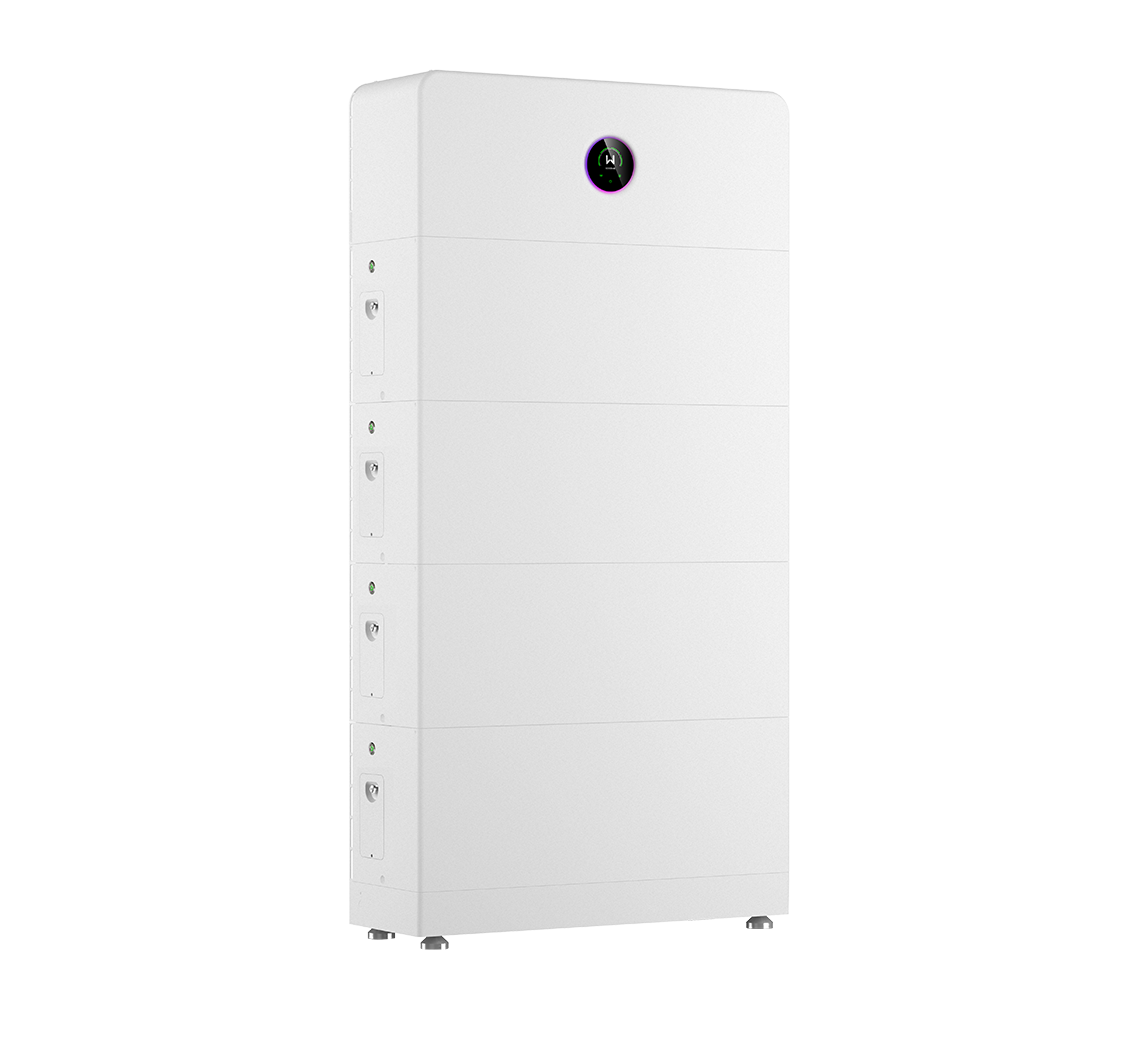

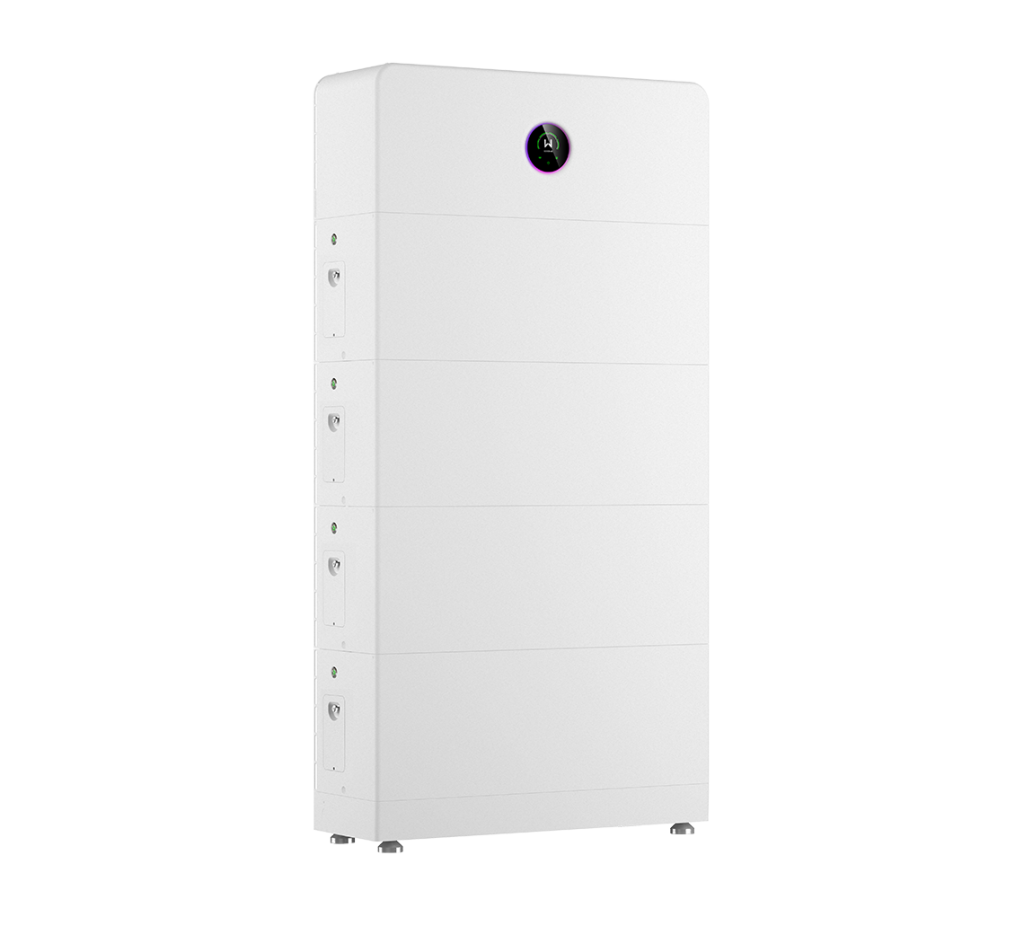

Redefining home energy, all-in-one. The ESA Series pairs a single phase hybrid power module (3 to 9.999 kW) with stackable LFP battery modules, from 5 kWh up to 108 kWh. Plug. Power. Go.
Key features
Silent, smart, secure and simple
Smart: 30% bill savings
AI-driven energy management system (EMS).
Silent: <30 dB
Fanless design for quiet operation.
Secure: 6-layer protection
Protection from cell to system.
Simple: 10-min installation
Plug. Power. Go.
Built for more scenarios
One system, ready for every situation
Optional functions or devices are purchased separately.
Technical data
ESA Series power module
| Technical data | GW3K-EHA-G20 | GW3.6K-EHA-G20 | GW5K-EHA-G20 | GW6K-EHA-G20 | GW8K-EHA-G20 | GW9.999K-EHA-G20 |
|---|---|---|---|---|---|---|
| Battery side | ||||||
| Battery type | LiFePO4 | |||||
| Nominal battery voltage | 380 V | |||||
| Battery voltage range | 350 ~ 550 V | |||||
| Start-up voltage*1 | 380 V | |||||
| Number of battery inputs | 1 | |||||
| Max. continuous charging current (A) | 11.9 | 14.3 | 19.8 | 23.7 | 31.6 | 35.6 |
| Max. continuous discharging current (A) | 8.7 | 10.5 | 14.5 | 17.4 | 23.2 | 29.0 |
| Max. charging power (kW) | 4.5 | 5.4 | 7.5 | 9.0 | 12.0 | 13.5 |
| Max. discharging power (kW) | 3.3 | 3.96 | 5.5 | 6.6 | 8.8 | 11.0 |
| PV side | ||||||
| Max. input power (kW) | 6.0 | 7.2 | 10.0 | 12.0 | 16.0 | 20.0 |
| Max. input voltage*2 | 600 V | |||||
| MPPT operating voltage range*3 | 40 ~ 560 V | |||||
| Start-up voltage | 50 V | |||||
| Nominal input voltage | 400 V | |||||
| Max. MPPT current | 20 A | |||||
| Max. MPPT short circuit current | 26 A | |||||
| Number of MPPTs | 2 | 2 | 2 | 2 | 4 | 4 |
| Number of strings per MPPT | 1/1 | 1/1 | 1/1 | 1/1 | 1/1/1/1 | 1/1/1/1 |
| AC side (on-grid) | ||||||
| Nominal power (kW) | 3.0 | 3.6 | 5.0 | 6.0 | 8.0 | 9.999 |
| Nominal apparent power to grid (kVA) | 3.0 | 3.6 | 5.0 | 6.0 | 8.0 | 9.999 |
| Max. apparent power to grid (kVA) | 3.0 | 3.6 | 5.0 | 6.0 | 8.0 | 9.999 |
| Max. apparent power from grid (kVA)*4 | 6.0 | 7.2 | 10.0 | 12.0 | 14.5 | 14.5 |
| Nominal voltage | 220 / 230 / 240 V, L / N / PE | |||||
| Voltage range | 170 ~ 280 V | |||||
| Nominal frequency | 50 / 60 Hz | |||||
| Frequency range | 45 ~ 55 / 55 ~ 65 Hz | |||||
| Max. current to grid @ 230 V (A) | 13.1 | 15.7 | 21.8 | 26.1 | 34.8 | 43.5 |
| Max. current from grid @ 230 V (A)*4 | 26.1 | 31.4 | 43.5 | 50.0 | 63.0 | 63.0 |
| Power factor | ~1 (adjustable from 0.8 leading to 0.8 lagging) | |||||
| THDi | <3% | |||||
| Back-up side | ||||||
| Nominal output apparent power (kVA) | 3.0 | 3.6 | 5.0 | 6.0 | 8.0 | 10.0 |
| Max. output apparent power (kVA) | 3.0 (6.0, 10 s) | 3.6 (7.2, 10 s) | 5.0 (10.0, 10 s) | 6.0 (12.0, 10 s) | 8.0 (16.0, 10 s) | 10.0 (20.0, 10 s) |
| Max. output apparent power, bypass (kVA) | 6.0 | 7.2 | 10.0 | 12.0 | 14.5 | 14.5 |
| Max. output current @ 230 V (A)*5 | 13.1 | 15.7 | 21.8 | 26.1 | 34.8 | 43.5 |
| Max. output current, bypass (A)*5 | 27.3 | 32.8 | 45.5 | 50.0 | 63.0 | 63.0 |
| Nominal output voltage | 220 / 230 / 240 V, L / N / PE | |||||
| Nominal output frequency | 50 / 60 Hz | |||||
| THDv (@ linear load) | <3% | |||||
| Efficiency | ||||||
| Max. efficiency | 97.6% | 97.6% | 97.6% | 97.6% | 97.5% | 97.5% |
| European efficiency | 96.5% | 96.5% | 96.8% | 97.0% | 96.8% | 96.8% |
| Max. battery to AC efficiency | 98.0% | 98.0% | 98.0% | 98.0% | 97.8% | 97.8% |
| Protection | ||||||
| Integrated | PV string current monitoring, PV insulation resistance detection, residual current monitoring, PV reverse polarity protection, battery reverse polarity protection, anti-islanding protection, AC overcurrent protection, AC short circuit protection, AC overvoltage protection, AFCI, remote shutdown | |||||
| DC / AC surge protection | Type II / Type II | |||||
| RSD | Optional | |||||
| General data | ||||||
| Operating temperature range | -35 ~ +60 °C (derating at +40 °C) | |||||
| Relative humidity | 0 ~ 95% | |||||
| Max. operating altitude | 4,000 m (>2,000 m derating) | |||||
| Cooling method | Natural convection | |||||
| User interface | LED, WLAN + app | |||||
| Communication with BMS | CAN | |||||
| Communication | RS485, WiFi + LAN + Bluetooth, 4G + Bluetooth (optional) | |||||
| Communication protocols | Modbus-RTU, Modbus-TCP | |||||
| Weight (kg) | 24 | 24 | 24 | 24 | 26 | 26 |
| Dimensions (W × H × D) | 800 × 300 × 270 mm | |||||
| Noise emission (dB) | ≤30 | ≤30 | ≤30 | ≤30 | ≤35 | ≤35 |
| Topology | Non-isolated | |||||
| Ingress protection rating | IP66 | |||||
| Mounting method | Wall / floor mounted | |||||
| Country of manufacture | China | |||||
*1 If there's no PV, start-up voltage will be 380 V. *2 When the input voltage is 560–600 V, the inverter enters standby mode and returns to normal operation when voltage returns to 560 V. *3 Refer to the user manual for the MPPT voltage range at nominal power. *4 The ESA series has an internal 63 A bypass passthrough to support a whole-home backup solution; if no breaker upgrade is wanted, the main breaker size in SolarGo (or SEMS+) can be set to the previous breaker size. *5 If the back-up port is not used, select an appropriate circuit breaker based on the AC max. output current. Max. current values shown at 230 V; values at 220 V and 240 V are listed on the GoodWe datasheet.
Technical data
ESA Series battery module
| Technical data | GW5.1-BAT-D-G20 | GW8.3-BAT-D-G20 | GW5.1-BAT-D-G21 | GW8.3-BAT-D-G21 | GW6.0-BAT-D-G20 | GW9.0-BAT-D-G20 |
|---|---|---|---|---|---|---|
| Battery type | LFP (LiFePO4) | |||||
| Rated energy (kWh) | 5.12 | 8.32 | 5.12 | 8.32 | 6.0 | 9.0 |
| Usable energy (kWh) | 5.0*1 | 8.0*2 | 5.0*1 | 8.0*2 | 5.8*3 | 8.7*3 |
| Operating voltage range | 350 ~ 550 V (single phase system) / 700 ~ 950 V (three phase system) | |||||
| Max. input current, system (A) | 12.0 | 19.0 | 12.0 | 19.0 | 7.1 | 10.7 |
| Max. output current, system (A) | 13.2 | 21.0 | 13.2 | 21.0 | 7.9 | 11.8 |
| Max. input power, system (kW)*4 | 5.0 | 8.0 | 5.0 | 8.0 | 3.0 | 4.5 |
| Max. output power, system (kW)*4 | 5.0 | 8.0 | 5.0 | 8.0 | 3.0 | 4.5 |
| Peak output power, system (kW)*4 | 7.5 @ 10 s | 12 @ 10 s | 7.5 @ 10 s | 12 @ 10 s | 4.5 @ 10 s | 6.75 @ 10 s |
| Charging temperature range | -18 ~ +55 °C | -18 ~ +55 °C | +2 ~ +55 °C | +2 ~ +55 °C | -20 ~ +55 °C | -20 ~ +55 °C |
| Discharging temperature range | -20 ~ +55 °C | |||||
| Relative humidity | 4 ~ 100% | |||||
| Max. operating altitude | 4,000 m | |||||
| Noise emission (dB) | ≤29 | ≤29 | ≤29 | ≤29 | ≤27 | ≤27 |
| Communication | CAN | CAN | CAN | CAN | CAN & 485 | CAN & 485 |
| Weight (kg) | 57.5 ± 1 | 79 ± 1 | 57.5 ± 1 | 79 ± 1 | 61 ± 1 | 77 ± 1 |
| Ingress protection | IP66 | |||||
| Dimensions (W × H × D) | 800 × 326 × 270 mm | |||||
| Function configuration | Heating (integrated); aerosol fire extinguishing (integrated) | Aerosol fire extinguishing (integrated) | Heating (integrated); aerosol fire extinguishing (integrated) | |||
| Max. storage time | 12 months (-20 ~ +35 °C); 6 months (+35 ~ +45 °C) | |||||
| Scalability*5 | 12 pcs | |||||
| Mounting method | Floor stacked / wall-mounted | Floor stacked / wall-mounted / grounded | ||||
| Cycle life*6 | ≥8,000 | ≥8,000 | ≥8,000 | ≥8,000 | ≥10,000 | ≥10,000 |
| Country of manufacture | China | |||||
| Safety | IEC62619, IEC60730, EN62477, IEC63056, IEC62040, CE, CEC, VDE2510 | IEC62619, IEC60730, EN62477, IEC63056, IEC62040, CE, CEC, Regulation 2023/1542, VDE2510-50 | ||||
| EMC | CE, RCM | |||||
| Transportation | UN38.3, ADR | |||||
*1 Test conditions: 98% DOD (cell 2.85–3.6 V), 0.2P charge & discharge at 25 ± 2 °C at beginning of life. *2 Test conditions: 96% DOD (cell 2.85–3.6 V), 0.2P charge & discharge at 25 ± 2 °C at beginning of life. *3 Test conditions: 100% DOD (cell 2.87–3.61 V), 0.4P charge & discharge at 25 ± 2 °C at beginning of life. Usable energy is defined by its initial design value; actual available energy may vary with charge/discharge rate, temperature, transport and storage. *4 Max. input / output / peak output power derates with temperature and SOC. *5 For single-column stacked installations, the maximum number of parallel units is 6. *6 Based on test data under specific laboratory conditions. Battery module based on Lynx D G2 Series technology.
